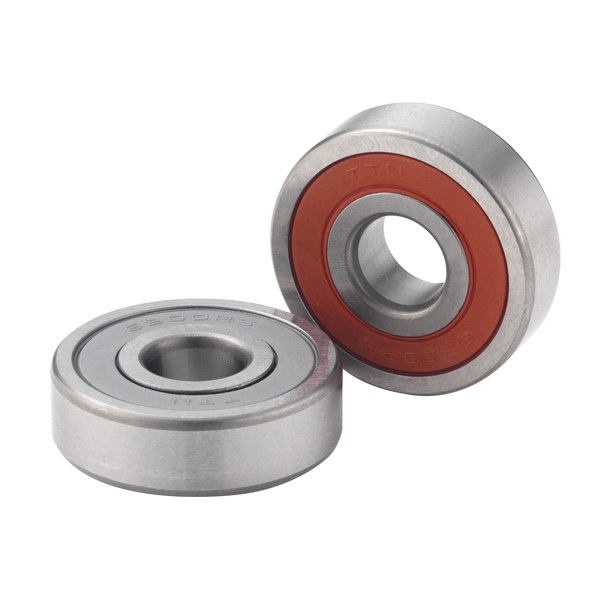

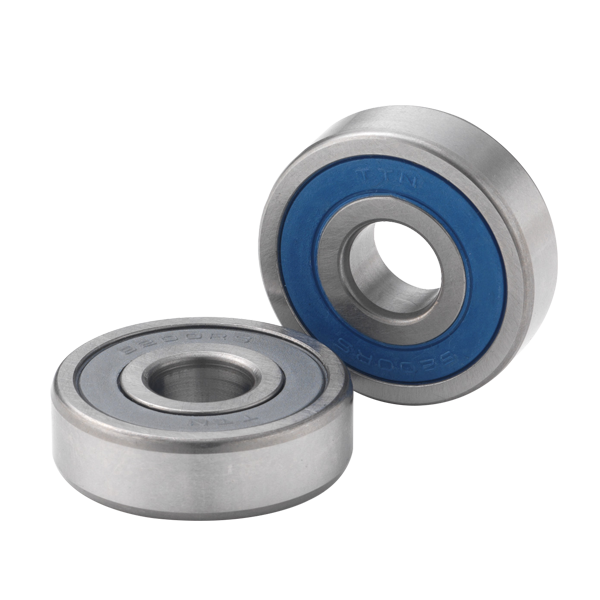

陶瓷軸承根據使用的條件不同主要有氧化鋯全陶瓷轴承、氮化硅全陶瓷軸承、碳化硅陶瓷軸承、鋼陶混合陶瓷軸承等,客戶可依需求選用。TTN針對自行車產品,設計了鋼陶混合陶瓷軸承以及全瓷軸承,提供了優越的綜合性能。
鋼陶混合陶瓷軸承內使用了氮化硅材質陶瓷珠,因為陶瓷密度為鋼球的40%,可抑制高速轉動產生的離心力,而其低摩擦阻力的特性,軸承整體具有高速和長壽命的優勢。
BEARING NO. | ID(MM)內徑 | OD(MM)外徑 | W(MM)寬度 | N/W(G) |
685 | 5 | 11 | 5 | 1 |
686 | 6 | 13 | 5 | 2.5 |
696 | 6 | 15 | 5 | 3.5 |
687 | 7 | 14 | 5 | 2.2 |
697 | 7 | 17 | 5 | 5 |
607 | 7 | 19 | 6 | 7 |
627 | 7 | 22 | 7 | 12 |
688 | 8 | 16 | 5 | 4.6 |
608 | 8 | 22 | 7 | 10.8 |
689 | 9 | 17 | 5 | 4.4 |
699 | 9 | 20 | 6 | 6.8 |
609 | 9 | 24 | 7 | 12.8 |
R6 | 9.525 | 22.225 | 7.142 | 9.8 |
6800 | 10 | 19 | 5 | 5.1 |
6900 | 10 | 22 | 6 | 8.8 |
6000 | 10 | 26 | 8 | 17.1 |
6200 | 10 | 30 | 9 | 31 |
6300 | 10 | 35 | 11 | 49 |
6801 | 12 | 21 | 5 | 5.8 |
6901 | 12 | 24 | 6 | 10 |
6001 | 12 | 28 | 8 | 18.8 |
6201 | 12 | 32 | 10 | 34 |
6301 | 12 | 37 | 12 | 56 |
6802 | 15 | 24 | 5 | 6.7 |
6902 | 15 | 28 | 7 | 15 |
MR15267 | 15 | 26 | 7 | 11.8 |
MR15268 | 15 | 26 | 8 | 13.5 |
6002 | 15 | 32 | 9 | 29 |
6202 | 15 | 35 | 11 | 42 |
MR16287 | 16 | 28 | 7 | 15 |
MR163110 | 16 | 31 | 10 | 26 |
6803 | 17 | 26 | 5 | 7.3 |
6903 | 17 | 30 | 7 | 15.3 |
MR17287 | 17 | 28 | 7 | 12.9 |
MR173110 | 17 | 31 | 10 | 28 |
6003 | 17 | 35 | 10 | 35 |
6203 | 17 | 40 | 12 | 64 |
MR18307 | 18 | 30 | 7 | 16.7 |
6804 | 20 | 32 | 7 | 16.7 |
6904 | 20 | 37 | 9 | 32 |
MR24377 | 24 | 37 | 7 | 20.8 |
6805 | 25 | 37 | 7 | 18.8 |
6905 | 25 | 42 | 9 | 37 |
MR30407 | 30 | 40 | 7 | 19 |
6806 | 30 | 42 | 7 | 21.5 |
6807 | 35 | 47 | 7 | 25 |
6907 | 35 | 55 | 10 | 68 |
6808 | 40 | 52 | 7 | 28 |
6908 | 40 | 62 | 12 | 105 |
6909 | 45 | 68 | 12 | 115 |
6810 | 50 | 65 | 7 | 48.5 |
